ServiceNow tile

About ServiceNow tiles

The ServiceNow tile allows you to query incidents and change requests from ServiceNow and display this data in SquaredUp DS.

SquaredUp DS Standalone Enterprise edition (or above) is required for access to the Splunk tile, ServiceNow tile, Azure App Insights tiles, High Availability, and Team Folders.
For more information about license pricing see pricing information.
To upgrade please contact [email protected]
To check the license edition you are using see How to check which license key is being used.

Should you use the Web API tile or the dedicated ServiceNow tile?

The ServiceNow tileoffers easier configuration than the Web API tile. You can display incidents and change request with the ServiceNow tile. If you want to use any other data from ServiceNow, you need to use the Web API tile.

The Web API tile can display other data in addition to incidents and change requests, it gives you more flexibility and advanced configurations.

For more information about using the Web API tile with ServiceNow see How to use the Web API tile with ServiceNow.

How to configure a ServiceNow tile

If you don't already have a ServiceNow provider, you need to create one before you can configure a ServiceNow tile (How to add a ServiceNow provider).

1. Add a new tile to a dashboard or a perspective and click on Integrations > ServiceNow.



2. Select the visualization for your ServiceNow tile:

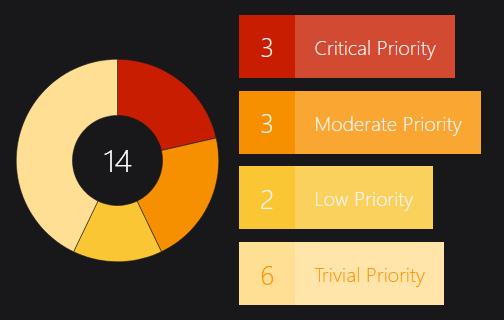

   Donut

   Shows the results in a donut shape.

   Example:





   Scalar

   A Scalar displays one value. A Scalar is useful to show a specific number like "total cost of my services" or "free disk space on this server".
   When a Data Stream returns multiple values (meaning a table with multiple rows), you will still be able to pick the Scalar visualization, but the Scalar will only show the value of the first row.

   Example:





   Grid

   A table of data, for example incidents or tickets.

   Tip: You can turn the individual rows into links in the settings. For example, if you're displaying tickets in your grid, you can link the rows to the ticket in your external ticket system.

   Did you know? Since SquaredUp DS 5.4 users can search the grid, and temporarily change the column size and sorting of the grid (by clicking on the column headers) without having to access the settings. They can also expand a row by clicking on the three dots at the end of each row if cells are too small to show their entire content.



3. Provider:
   Select your ServiceNow provider from the select provider drop-down and click next.


   You can only use providers of the same type as the tile. Providers of other types won't be shown in the select provider drop-down.

   Note: If you click on add new, you can create a new ServiceNow provider in a new tab. Click on reload after you created the new provider to be able to choose it from the drop-down.

4. Table:
   Table:
   Here you can choose if you want to get incidents or change requests (for any other data, you can't use the ServiceNow tile and need to use the Web API tiles, see How to use the Web API tile with ServiceNow).
   View:
   Here you choose the view that determines the set of columns which will be displayed. Views are created in ServiceNow and the list of views is populated from there.

   To allow the ServiceNow views to be pulled into the ServiceNow Grid visualization the ServiceNow account must also have the 'admin' role in ServiceNow.



   If you only see the non-admin default view in the View dropdown

   It depends on the ServiceNow account you are using for a provider if you can see all the available views or only the non-admin default view in the View dropdown.

   How the ServiceNow account affects the ServiceNow tile
   The permissions of the ServiceNow account you are using for your ServiceNow providerplugin affect what you can see and do in the ServiceNow tile.

   We recommend using a service account, which means you create an account specifically to use with the ServiceNow providerplugin. You have different options for setting up this service account:

   • ServiceNow permissions assignment with roles
     Give the ServiceNow account the ITIL and rest_api_explorer roles.
   • ServiceNow permissions assignment with ACLs, in place of roles
     If you don't want to use the ITIL role (for licensing or security reasons) give the ServiceNow account only the rest_api_explorer role and use ACLs to give the account more rights. This will limit the functionality of the ServiceNow tile.Using accounts without the ITIL role may cause data streams to error.
     How to add the necessary ACLs to your ServiceNow account

     When you are using an account without the roles specified in this article, then the functionality of the ServiceNow tileplugin is limited:.

     • You'll see an error if you used a scope for your tile
     • In the View dropdown, only the non-admin default view is available (contains a default set of columns)
     • Under Filter, default filters are not available, only user-created ones are visible

     You can grant the specific permissions required more granularly by creating a custom role and assigning the specific ACLs or assigning the ACLs themselves directly to a user account:

     ACLs can be added in two ways:

     • Adding them directly to a user account, meaning you are adding the ACLs to the service account you are using for the ServiceNow providerplugin.
     • Adding them to a role. We recommend that you create a new role specifically just for adding the ACLs to it. Then you need to assign the role to the service account you are using for the ServiceNow providerplugin.
       A benefit of adding the ACLs to a role is that it makes them easier to manage and you can assign the role to different users (in this case, service accounts) if you want to use different service accounts for different instances of the ServiceNow providersplugin.

     You need to add the following ACLs:

     sys_filter

     sys_dictionary.*

     sys_dictionary

     sys_db_object

     sys_ui_list

     sys_db_object.*

     sys_ui_list.*

     What tile functions do those ACLs add when I use a non-admin ServiceNow account?

     • The tile can be scoped
     • Under Filter, all default filters are visible
     • The ACLs don't affect the views. The View dropdown still shows only the non-admin default view. You need to use an admin Service account to see all the views.

   Filter:
   Here you choose a filter to restrict the query to certain items. You'll see default filters from ServiceNow and filters that have been created by users in ServiceNow.
   If you only see user-created filters but no default filters

   It depends on the ServiceNow account you are using for a provider if you can see the default filters.

   How the ServiceNow account affects the ServiceNow tile
   The permissions of the ServiceNow account you are using for your ServiceNow providerplugin affect what you can see and do in the ServiceNow tile.

   We recommend using a service account, which means you create an account specifically to use with the ServiceNow providerplugin. You have different options for setting up this service account:

   • ServiceNow permissions assignment with roles
     Give the ServiceNow account the ITIL and rest_api_explorer roles.
   • ServiceNow permissions assignment with ACLs, in place of roles
     If you don't want to use the ITIL role (for licensing or security reasons) give the ServiceNow account only the rest_api_explorer role and use ACLs to give the account more rights. This will limit the functionality of the ServiceNow tile.Using accounts without the ITIL role may cause data streams to error.
     How to add the necessary ACLs to your ServiceNow account

     When you are using an account without the roles specified in this article, then the functionality of the ServiceNow tileplugin is limited:.

     • You'll see an error if you used a scope for your tile
     • In the View dropdown, only the non-admin default view is available (contains a default set of columns)
     • Under Filter, default filters are not available, only user-created ones are visible

     You can grant the specific permissions required more granularly by creating a custom role and assigning the specific ACLs or assigning the ACLs themselves directly to a user account:

     ACLs can be added in two ways:

     • Adding them directly to a user account, meaning you are adding the ACLs to the service account you are using for the ServiceNow providerplugin.
     • Adding them to a role. We recommend that you create a new role specifically just for adding the ACLs to it. Then you need to assign the role to the service account you are using for the ServiceNow providerplugin.
       A benefit of adding the ACLs to a role is that it makes them easier to manage and you can assign the role to different users (in this case, service accounts) if you want to use different service accounts for different instances of the ServiceNow providersplugin.

     You need to add the following ACLs:

     sys_filter

     sys_dictionary.*

     sys_dictionary

     sys_db_object

     sys_ui_list

     sys_db_object.*

     sys_ui_list.*

     What tile functions do those ACLs add when I use a non-admin ServiceNow account?

     • The tile can be scoped
     • Under Filter, all default filters are visible
     • The ACLs don't affect the views. The View dropdown still shows only the non-admin default view. You need to use an admin Service account to see all the views.

5. Configure the settings for the visualization you chose:
   Settings for Scalars

   Scalar

   Font size	Allows you to set the font size of the value in the tile.
   Alignment	Select the scalar text alignment. Choose from left, center or right.
   Unit	Allows you to add a unit to the value displayed in the Scalar tile. For example, if your value shows a time in milliseconds, you can enter "ms" or if your value shows pageviews, you can enter "pageviews".
   Value formatter	Allows you to format the value by using the mustache picker. For example, you can round the value up or down or convert it.

   Color

   Conditional formatting:

   You can display the data in different colors based on values you define here. For example, you can display the data in green when the value is below 100 and in red when it is above 100.

   1. Click on add to configure a condition.

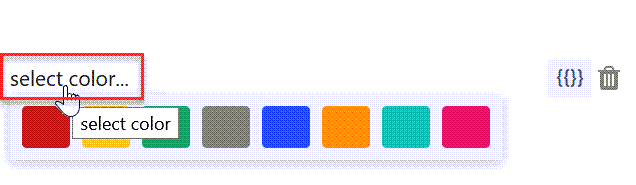

   2. Click on select color.... to open the color picker. Select the color for this condition.



   3. Enter your condition in the field next to the color. You can use the value property and manipulate it with JavaScript String and Regex APIs. When you click on the mustache picker, you'll get some examples:
      • Value is greater than something, less than something, etc.
        For example: {{value < 10}} (The color you pick will be used if the value is less than 10)
      • Value is present in the result (scalar tiles only)
        For example: value.IndexOf('error') != -1 (The color you pick will be used if the string value "error" is present in the results)
      • Value matches one of the regular expressions you defined (scalar tiles only)
        For example: value.match(/healthy|good|up/) (The color you picked will be used if the string values are healthy, good, or up)

   Display:

   Here you decide how the color is used:

   Tile background	Highlight the tile in the color you defined.
   Text foreground	Display the text in the color you defined.

   Link options

   Allows you to turn the graph item(s) into links. You can either enter plain text to create a fixed link (URL always stays the same) or use dynamic properties to create a dynamic link.

   Dynamic links make use of dynamic properties which are inserted as part of the URL. This creates a template URL that will be resolved to an actual URL based on the items properties.

   For example, if you want to link to tickets in your ticket system and the format of the URL for tickets in your system is https://www.my-system/ticket-123, where 123 is the ticket ID, you can use the dynamic property that contains the ticket ID and enter the dynamic URL https://www.my-system/ticket-{{ticketID}}.

   • For scalars, you can only use the dynamic property value in dynamic links, which means the link changes when the value of the scalar changes. Since a scalar is just one item, it would also make sense to use a fixed link, for example the link to the website of which you are displaying the response time.
   • For status icon or bars and the rows of a grid, you usually want to use a dynamic link since you get multiple items or rows that represent different things. You can use any of the dynamic properties the mustache picker offers you.

   Examples for URLs with dynamic properties for popular APIs

   Dynamic mustache properties and values you need to change according to your instance are highlighted in bold.

   ServiceNow incidents:
   https://<your-instance>.service-now.com/nav_to.do?uri=%2Fincident.do%3Fsys_id%3D{{sys_id}}

   PagerDuty incidents:
   {{incident.html_url}}

   Azure DevOps projects:
   https://dev.azure.com/<your-instance>/{{name}}

   Azure DevOps builds:
   https://dev.azure.com/<your-instance>/_build/results?buildId={{id}}

   Zendesk tickets:
   https://<your-instance>.zendesk.com/agent/tickets/{{id}}

   Azure Application Insights
   https://portal.azure.com/#@squaredup.net/resource/{{ResourceId}}


   Settings for Donuts

   Display

   Size mode:

   Default	Displays the donut scaled to the height of the tile.
   Fill	Enlarges the donut to use the whole width of the tile. If you chose the fill option and show the legend, you can define the size of the legend with a slider.

   Show legend:

   Allows you to show or hide the legend of the graph.

   Display mode:

   Allows you to switch between displaying absolute values or percentages.

   Settings for Grids

   Display

   Limit:

   Allows you to change the limit for the number of rows of data returned (default is 20).

   Sort by:

   Allows you to sort the data by a column in ascending or descending order. The Sort option uses the many incident fields, and you can sort by one of them even if that field is not currently displayed in your results table. To make this more clear you may like to reference this in the tile title, for example Incidents, sorted by priority.

6. Click done to save the tile.

   The tile now shows data according to your settings.

FAQs

Why can't I find the provider I created in the dropdown list?

If you are unable to see your provider in the list check that it is a servicenow provider. Any other types of providers will not be shown in the dropdown.

How do I query data other than Incidents or Change Requests ?

The ServiceNow tile can only show Incidents or Change Requests. If you wish to query other tables use the Web API tile to query the ServiceNow API instead of the ServiceNow tile (see How to use the Web API tile with ServiceNow).

How do I create a new view or filter ?

The list of views and filters is pulled from ServiceNow. When you create any new views and filters in ServiceNow they will be available in SquaredUp DS.
